This page is a guideline only to be used as an aid to comprehensive
training. These guidelines are not meant to replace applicable user
manuals.
LOGIN TO THE HScribe SYSTEM
Select the Hscribe desktop icon to launch the application.
Enter your provided login credentials, if required.
PREPARING THE RECORDER: CONNECTING TO SYSTEM AND RECORDER STATUS

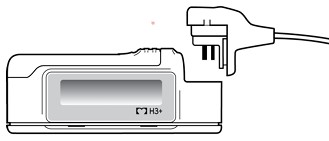

Remove H3+ recorder battery before you connect
the recorder to the USB cable.
Connect the H3+ recorder to the white USB download cable.
Select the Prepare Recorder/Card icon on the
HScribe main menu.
The recorder status, found on the upper portion on the page,
should say Erased prior to preparing for a new
patient.
PREPARING THE RECORDER: CONNECTING TO SYSTEM AND RECORDER STATUS
IF
NO
ORDER IS PRESENT:
From within the Prepare Recorder/Card window:
Select the Erase Recorder button to erase
previously obtained data.
The Search Patients tab is automatically
selected.
Search for existing patients in the database by entering patient
name or MRN and clicking on the SEARCH button. When the correct
patient is found, click on it and the information will
auto-populate.
If a patient is not found, enter patient information
manually on the left panel (minimum recommendation is Last Name,
First Name, ID or MRN, and Date of Birth).
Set the recorder duration, which can be 24 or 48 hours.
Click on Prepare Recorder/Card button located in
the lower left portion of the tab.
The recorder status will now display Prepared and
is now ready to be placed on a patient.
IF AN ORDER
IS
PRESENT:
From within the Prepare Recorder/Card window:
Select the Erase Recorder button to erase
previously obtained data.
Select the Exams tab.
Select the patient from the displayed exams list. The patient
information will auto-populate on the left panel.
Set the recorder duration, which can be 24 or 48 hours.
Click on Prepare Recorder/Card button located in
the lower left portion of the tab.
The recorder status will now display Prepared and
is now ready to be placed on a patient.
